Remove and Install Sump Pan

NOTE: Sump pan can be installed to reduce the accumulation of crop material between the cutter bar and center feed belt.

If side belts are in the inward position, temporarily slide side belts to the outward position to aid in installing sump pan.

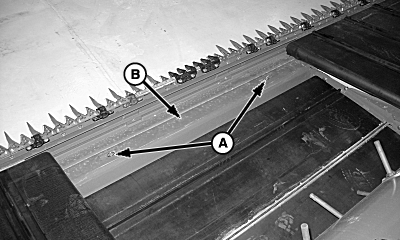

Sump pan (B) can be removed by removing quick-lock pins (A).

A-Quick-Lock Pins
B-Sump Pan
