Center Draper Belt Tension

causym CAUTION: When working under the platform always place the hydraulic cylinder safety stop in the safety position to prevent header from lowering.

1. Completely raise feeder house and lower safety stop (A) onto hydraulic cylinder.

2. Shut off engine, set parking brake and remove key.


A-Safety Stop

TS696
H57965

NS43404,00005E7 -19-05MAR08-1/2

NOTE: For difficult crop conditions, additional belt tensioning is required. Increase belt tension only as required as belt life is affected.

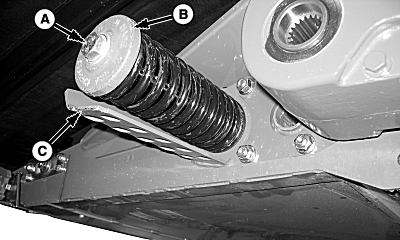

3. Adjust center draper belt tensioner (A) so that spring washer (B) is just inside the edge of guard (C).

4. Check operation of center draper belt and recheck belt tensioner to ensure that proper tension is applied to belt.


A-Tensioner
B-Spring Washer
C-Guard
