Feed Drum Finger Timing

1. To change finger timing loosen three flange nuts (A) on the right-hand end of feed drum.

2. Rotate timing wedlment using handle (B) clockwise to advance or counter clockwise to retard timing. Hex shaft (C) extends out from the timing casting to allow the use of a wrench to assist in rotating the casting.

3. Tighten nuts (A) to specification.

Specification

Nut -Torque 60 N·m (44 lb-ft)

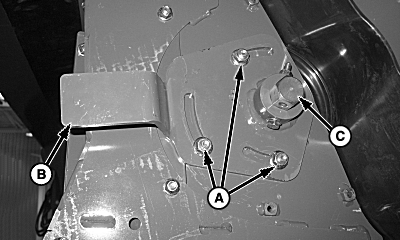

H90663


A-Flange Nut
B-Handle
C-Hex Shaft

NS43404,00005E8 -19-09JUN08-1/1
