Remove and Install Backshaft Drive Belts

1. Raise left-hand, rear side shield shield (A).

2. Pull tension arm (B) until tension arm lock (C) can be used to lock arm in place. If tension is too strong, loosen tensioner nut (E).

3. Remove backshaft drive belts (D). Replace as necessary.

4. Install new backshaft drive belts in reverse order of removal. If tensioner nut was loosened during removal, be sure to retighten.

5. Unlock tension arm and close side shield.

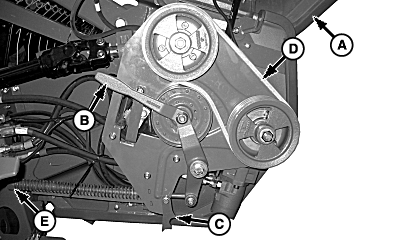

H90668


A-Rear Side Shield (Left-Hand Side)
B-Tension Arm
C-Tension Arm Lock
D-Backshaft Drive Belts (3 Used)
E-Tensioner Nut

NS43404,00005EB -19-02JUN08-1/1
