Remove and Install Feed Drum Fingers

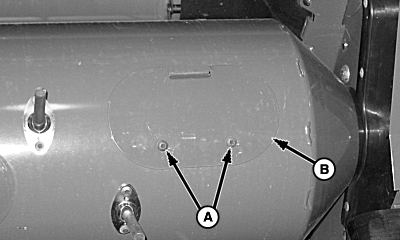

1. Remove cap screws (A) and access hole covers (B).


A-Cap Screw
B-Access Hole Cover

H91675

NS43404,00005FE -19-09JUN08-1/3

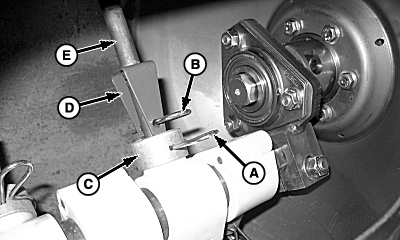

2. Remove pins (A and B).

NOTE: Be sure to retain finger ball and inside finger guide if guard cap screws were removed.

3. Remove collar (C), retainer (D) and finger (E).

4. Replace fingers and parts as necessary.


A-Pin
B-Pin
C-Finger Collar
D-Finger Retainer
E-Feed Drum Finger

H91678

NS43404,00005FE -19-09JUN08-2/3

5. Install access cover (B) and retain with cap screws (A).


A-Cap Screw
B-Access Hole Cover

H91675

NS43404,00005FE -19-09JUN08-3/3
