Equalize the Float System

    Loosen nut (A) and make adjustments accordingly.

  • If right side seems heavier:
    • Move left cylinder towards front of platform.

      OR

    • Move right cylinder towards back of platform.
  • If left side seems heavier:
    • Move right cylinder towards front of platform.

      OR

    • Move left cylinder towards back of platform.

After making adjustments torque nut to specification.

Specification

Float System Equalizer Nut -Torque 850 N·m (630 lb-ft)

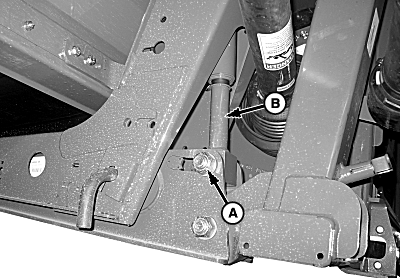

H90717

Left Side Shown


A-Float System Equalizer Nut
B-Float Cylinder

NS43404,00005FF -19-09JUN08-1/1
