Minimum Reel Height and Leveling Reel

IMPORTANT: Avoid damage to draper belts. Before fully retracting lift cylinders, extend fore/aft cylinders completely.

Adjust minimum reel height clearance with lift cylinders fully retracted and reel fingers/slats positioned as close as possible to cutterbar using fore/aft cylinders.

1. Fully retract lift cylinders.

2. Position reel fingers/slat as close to cutterbar as possible, using fore/aft cylinders.

3. Loosen jam nut (A).

4. Use a wrench on rod (B) to raise and lower the reel. Set clearance between reel fingers and cutterbar, evenly on both sides, using the given specifications.

Specification

Fingers to Cutterbar -Clearance 64 mm (2 1/2 in.)

5. Tighten jam nut.

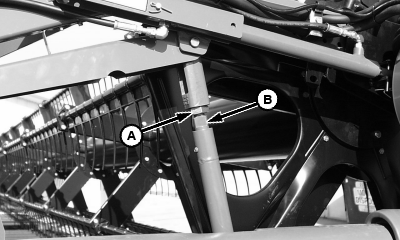

H67521


A-Jam Nut
B-Cylinder

NS43404,0000608 -19-25FEB08-1/1
