Finger Pickup Settings

IMPORTANT: Reel to knife clearance must be readjusted whenever finger pitch is changed. Failure to do so may cause damage to reel and/or cutterbar.

1. Pull and rotate lock pin (A) on one side so it is unlatched from reel.

2. On opposite side, pull lock pin (A) and using handle (B) set desired finger picking setup.

3. Once desired setup is obtained, engage lock pins (A) on both sides of reel.

4. Readjust reel to knife clearance (See MINIMUM REEL HEIGHT AND LEVELING REEL procedure in this section).

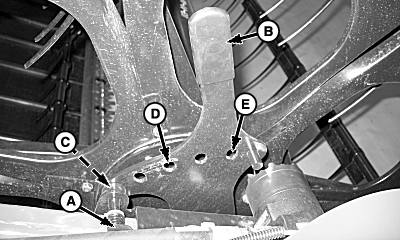

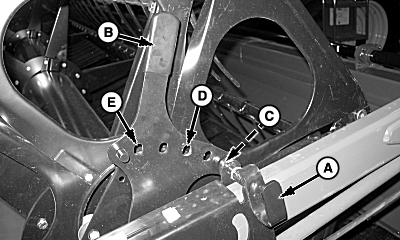

A-Lock Pin
B-Handle
C-Least Aggressive
D-Medium Aggressive
E-Most Aggressive
