Fore/Aft Cylinder Mount Adjustments

1. Lower draper to ground. Raise reel and engage safety stops.

2. Retain reel to lift arms to prevent reel from moving while disconnecting fore/aft cylinder.

3. Remove pins and spacers, on both sides, retaining reel to lift arm.

4. Make adjustments to cylinders until desired position (A, B, or C) is obtained. Adjust reel position if necessary.

5. Reinstall pins and spacers to retain reel to fore/aft hydraulic cylinder.

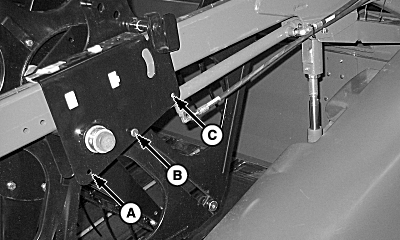

H91657

Left-Hand End Shown


A-Inner Position
B-Middle Position
C-Outer Position

NS43404,000060C -19-29MAY08-1/1
