Speed Ratio Sensor Adjustment

1. Remove cap screws (A) and shield (B).


A-Cap Screws
B-Shield

H90672

NS43404,000060D -19-22APR08-1/2

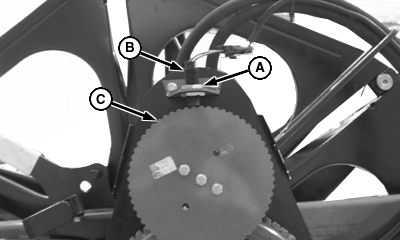

2. Loosen jam nut (A).

3. Adjust sensor (B) until it touches tone wheel (C) then unscrew sensor one-half turn.

4. Rotate the reel by hand to ensure sensor does not contact tone wheel.

5. Tighten jam nut (A).

6. If needed unscrew sensor another half turn. Repeat until sensor and tone wheel have adequate clearance.

7. Reinstall shield with cap screws (A).

H60706


A-Jam Nut
B-Sensor
C-Tone Wheel

NS43404,000060D -19-22APR08-2/2
