Detaching Platform from Combine
1.

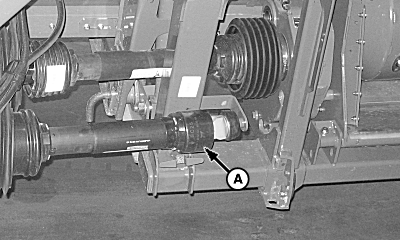

Disconnect drive shaft (A) and place in storage position as shown.
A-Drive Shaft
|
|
|
|
NS43404,000060F -19-09JUN08-1/4
|
|
2.

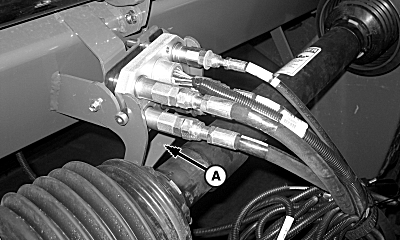

Remove multicoupler cover (A) on header.
A-Cover
|
|
|
|
NS43404,000060F -19-09JUN08-2/4
|
|
3.
Disconnect multicoupler from combine, place on storage bracket and close handle (A).
A-Handle
|
|
|
|
NS43404,000060F -19-09JUN08-3/4
|
|
4.
Reinstall cover (A) on combine.
5.
Start engine and lower feeder house until platform is on the ground and pivot blocks are free.
6.
Drive combine slowly rearward until feeder house is clear of platform.
A-Cover
|
|
|
|
NS43404,000060F -19-09JUN08-4/4
|
|
