Center Draper Cleanout

1. Raise platform completely and engage feeder house safety stop.

2. Set parking brake, turn OFF engine, and remove key.

3. Remove and retain cap screws and nuts (A) to lower center draper cleanout door (B).

4. Cleanout any debris that has built up in center draper belt drives and surrounding area.

5. Close door and retain with previously removed hardware.

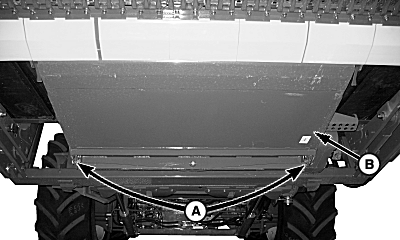

H90721


A-Cap Screws and Nuts
B-Center Draper Cleanout Door
