Every 50 Hours of Operation

NOTE: All checks should be made with platform on the ground and the transport system in field mode.

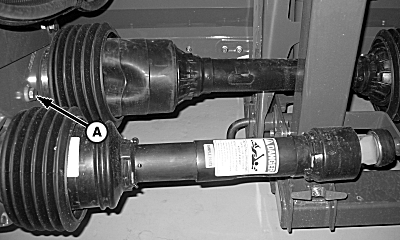

1. Check Main Gearbox Oil Level

a. Remove plug (A) to check oil level.

b. If necessary, add 80W-90 oil up to plug hole.

c. Reinstall plug.


A-Plug

H90731

NS43404,0000615 -19-01AUG08-1/11

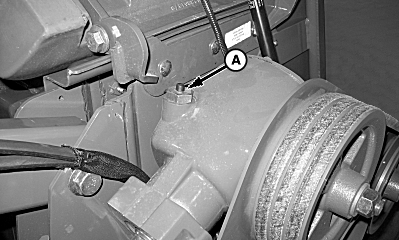

2. Check 90° Gearbox Oil Level

a. Remove dipstick (A).

b. If necessary, add 80W-90 oil up to marks on the dipstick.

c. Reinstall dipstick.

d. If platform uses dual knife, repeat procedure on opposite side.


A-Dipstick

H90726

NS43404,0000615 -19-01AUG08-2/11

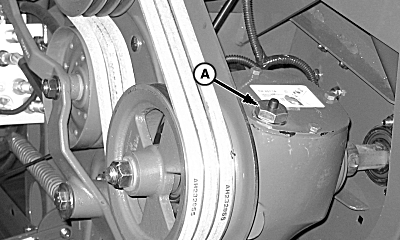

3. Check Charge Pump Gearbox Oil Level

a. Remove dipstick (A).

b. If necessary, add 80W-90 oil up to marks on the dipstick.

c. Reinstall dipstick.


A-Dipstick

H90725

NS43404,0000615 -19-01AUG08-3/11

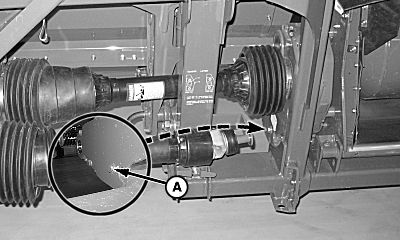

4. Check Center Feed Gearbox Oil Level

a. Remove plug (A) to check oil level.

b. If necessary, add 80W-90 oil up to plug hole.

c. Reinstall plug.


A-Plug

H90727

NS43404,0000615 -19-01AUG08-4/11

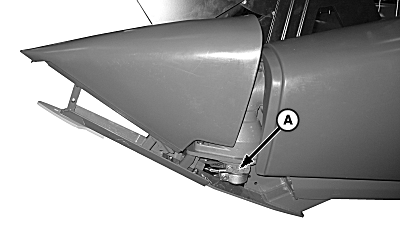

5. Grease Knife Head Grease Fitting

a. Apply grease to knifehead gearbox grease fitting (A).

b. If platform uses dual knife, repeat procedure on opposite side.


A-Knifehead Gearbox Fitting

H90723

NS43404,0000615 -19-01AUG08-5/11

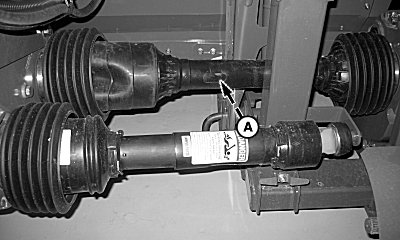

6. Grease Feed Drum Drive Shaft Grease Fitting

a. Align hole in shield to locate grease fitting. Apply grease to center feed drive shaft grease fitting (A).

b. Apply grease to slip clutch grease fitting (B).


A-Center Feed Drive Shaft Fitting
B-Slip Clutch Grease Fitting

H90729

NS43404,0000615 -19-01AUG08-6/11

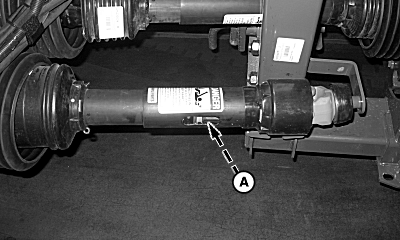

7. Grease Input Drive Shaft Grease Fitting

- Align hole in shield to locate grease fitting. Apply grease to input drive shaft grease fitting (A).


A-Input Drive Shaft Fitting

H90730

NS43404,0000615 -19-01AUG08-7/11

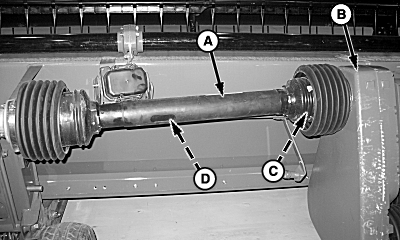

8. Grease Backshaft Drive Shaft Grease Fitting

a. Disconnect backshaft driveshaft (A) from main gearbox (B) using quick-attach (C).

b. Align hole in shield to locate grease fitting.

c. Apply grease to backshaft drive shaft grease fitting (D)


A-Backshaft Drive Shaft
B-Main Gearbox
C-Quick-Attach Coupler
D-Backshaft Drive Shaft Fitting

H90732

NS43404,0000615 -19-01AUG08-8/11

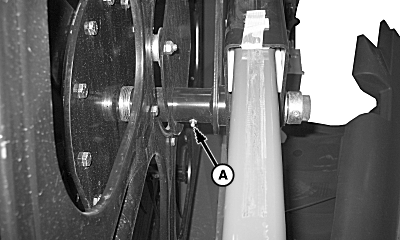

9. Grease Reel Grease Fitting

- Apply grease to reel grease fittings (A) on both sides of platform.


A-Reel Grease Fitting

H91079

Left-Hand Side Shown

NS43404,0000615 -19-01AUG08-9/11

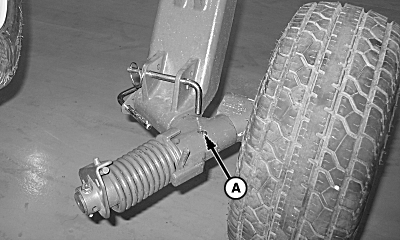

10. Grease Guide Wheel Support Grease Fittings

- Apply grease to guide wheel support grease fitting (A) on both sides of machine.


A-Guide Wheel Support Fitting

H91081

All Models - Both Sides of Machine

NS43404,0000615 -19-01AUG08-10/11

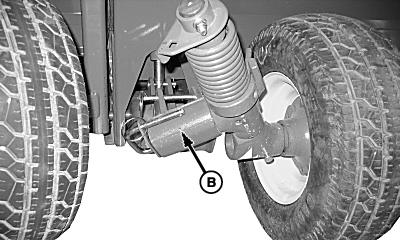

11. Grease Guide Wheel Support Grease Fittings (Slow Speed Integral Transport System ONLY)

- Apply grease to grease fittings (A and B) on the slow speed integral transport system.


A-Left-Hand Grease Fitting
B-Right-Hand Grease Fitting

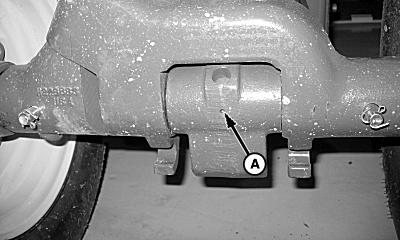

H91082

Left-Hand Side

H91083

Right-Hand Side

NS43404,0000615 -19-01AUG08-11/11
