Every 200 & 400 Hours of Operation

NOTE: All checks should be made with platform on the ground and the transport system in field mode.

1. Grease Knife Drive Gearbox - 200 Hours

a. Apply 10 pumps of grease to gearbox grease fitting (A).

b. If platform uses dual knife, repeat procedure on opposite side.

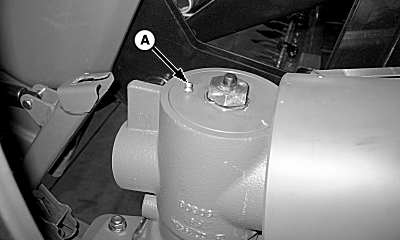

A-Knife Drive Gearbox Grease Fitting

H90722

NS43404,0000616 -19-26JUN08-1/5

2. Grease Feed Drum Drive Shaft Slip Clutch Grease Fitting - 200 Hours

- Align hole in shield to locate grease fitting. Apply grease to feed drum slip clutch.

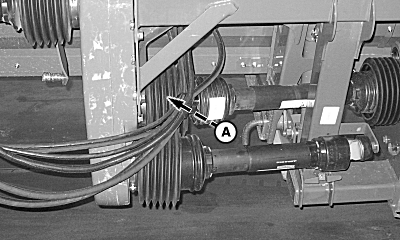

A-Slip Clutch Fitting

H90728

NS43404,0000616 -19-26JUN08-2/5

3. Grease Telescoping Knife Drive Shaft - 200 Hours

a. Align hole in shield to locate grease fitting. Apply grease to knife drive shaft grease fitting (A).

b. If platform uses dual knife, repeat procedure on opposite side.

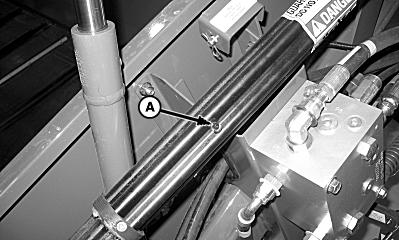

A-Knife Drive Shaft Fitting

H90724

NS43404,0000616 -19-26JUN08-3/5

4. Grease Guide Wheel Grease Fittings - 200 Hours

- Apply grease to grease fitting (A) on all guide wheels.

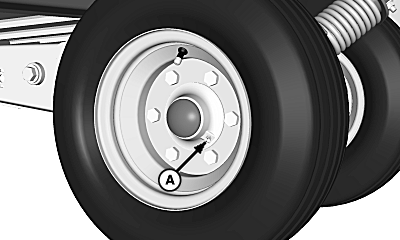

A-Guide Wheel Grease Fitting

H91080

NS43404,0000616 -19-26JUN08-4/5

5. Grease the Reel Lift Cylinder - 400 Hours

- Apply grease to the reel lift cylinders (A) on both sides of platform.

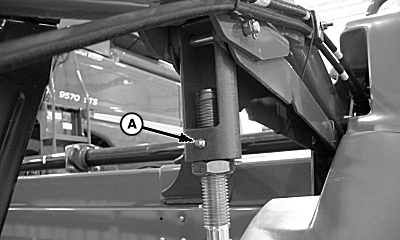

A-Reel Lift Cylinder

H91078
