Armrest Functions

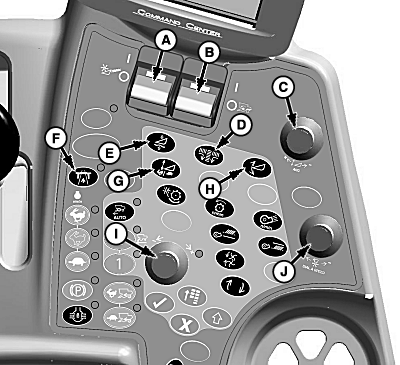

CommandCenter™ Armrest header functions:
For complete information on each function see your Combine Operator's Manual.
A-Header Engage and Feeder House Reverser Switch
B-Separator Engage Switch
C-Header Height/HydraFlex™ Pressure Control Dial
D-Draper Belt Speed Adjust Switch
E-Cutterbar Pressure Adjust Switch
F-Road Transport Disconnect Switch
G-Feeder House Rate/Sensitivity Adjust Switch
H-Cutterbar Tilt Adjust Switch
I-Selection Dial (Operating Adjustments and Controls)
J-Reel Speed or Belt Pickup Speed Dial
|
