Crop Lifter Adjustments

IMPORTANT: For the crop lifter to function properly, the bottom of the arm surface must be parallel to the ground when the platform is in cutting position. Failure to set properly leads to poor performance and guard or lifter damage.

NOTE: If the platform tilt adjustment is in an extreme position, it is possible that proper crop lifter orientation cannot be achievable. Readjust the platform tilt to a more normal setting.

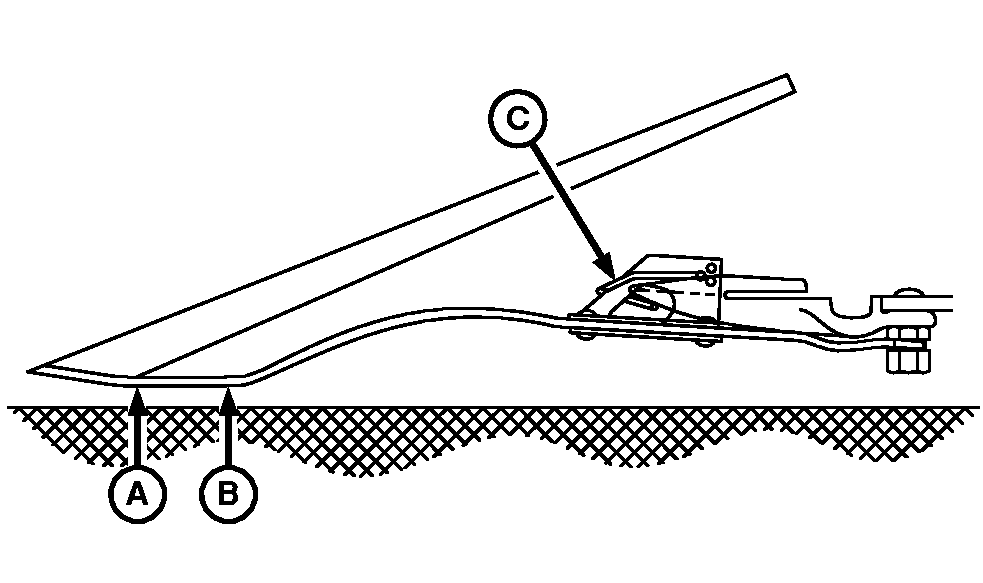

Lower the platform until the lifter is just off the surface of the ground. In this position, the lifter arm portion between (A) and (B) must be parallel to the ground as shown. If it is not, change the position of the retainer clip (C) until the correct orientation is achieved.

A-Ground Position
B-Ground Position
C-Retaining Clip

NS43404,0000633 -19-21APR08-1/3

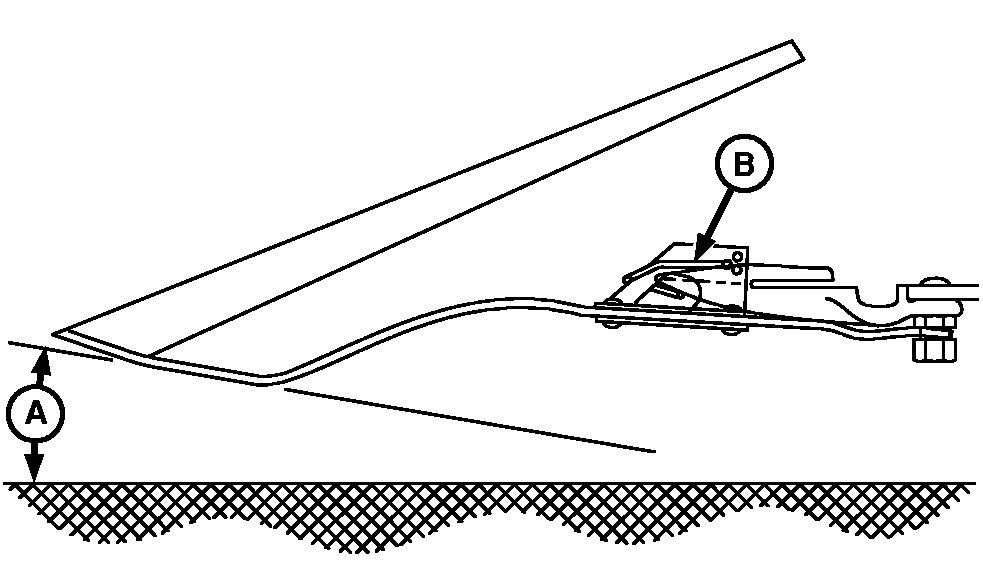

IMPORTANT: Never operate a crop lifter with the point angled downward (A). The crop lifters can dig into the ground and causing damages.

Operating the crop lifter with an extreme downward angle (A) causes the lifter to dig into the ground.

Change the position of the retainer clip (B) until the correct orientation is achieved.

A-Incorrect Angle (Angled Down)
B-Retainer Clip

NS43404,0000633 -19-21APR08-2/3

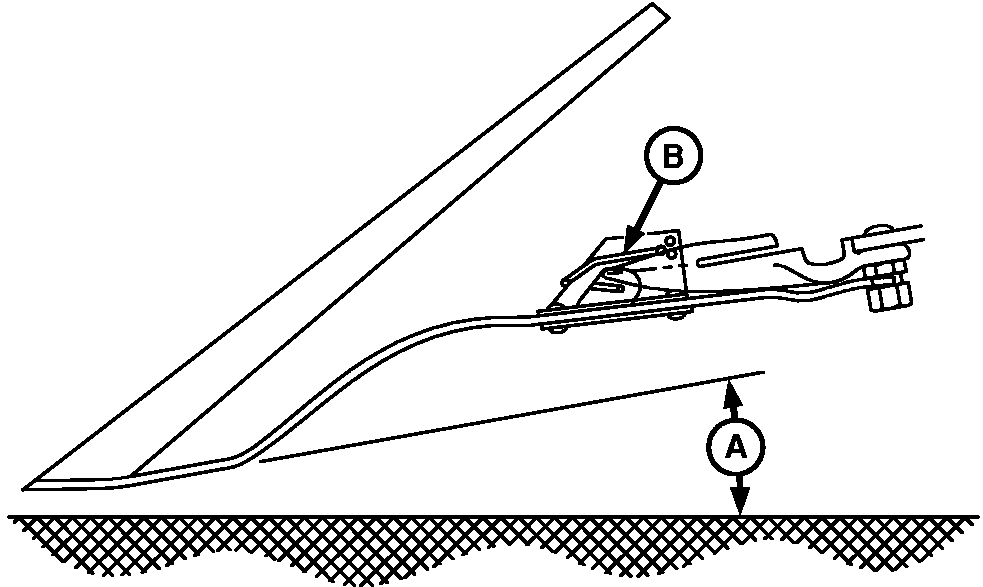

Operating the crop lifter with an extreme upward angle (A) reduces lifting performance and causes the lifter to climb over the down crop.

Change the position of the retainer clip (B) until the correct orientation is achieved.

A-Incorrect Angle (Angled Up)
B-Retaining Clip
