Removing Center Feed Assembly

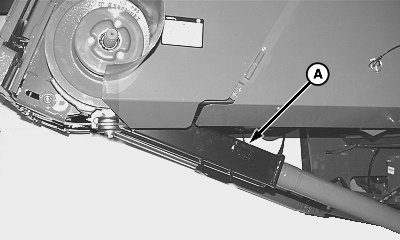

causym CAUTION: Death to you or others can occur from feeder house inadvertently lowering. Do not for any reason climb under feeder house or attached components unless feeder house safety stop (A) is engaged.

1. Put platform into field mode (See PREPARING PLATFORM FOR FIELD OPERATION procedure in the TRANSPORTATION section of this manual).

2. Place 6" x 6" block under float arms and lower draper to ground. Leave combine attached.


A-Feeder House Safety Stop

TS696
H76859

OUO6041,0000051 -19-23SEP08-1/15


3. Remove multicoupler from storage bracket.

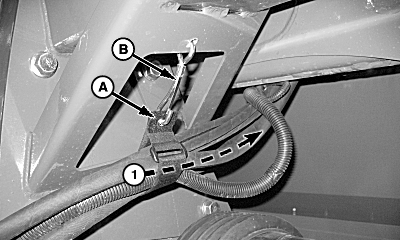

4. Remove multicoupler hose strap (A) from latch (B) and route multicoupler through attachment frame (1).

5. Reattach multicoupler to storage bracket.

6. Raise feeder house enough to support center feed weight. Do not attach multicoupler.


A-Multicoupler Hose Strap
B-Latch

H91827

OUO6041,0000051 -19-23SEP08-2/15

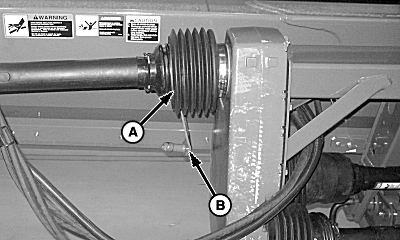

7. Remove backshaft (A) from main gearbox and place on mounting post (B).


A-Backshaft
B-Mounting Post

H91821

OUO6041,0000051 -19-23SEP08-3/15

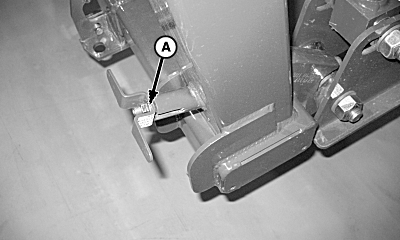

8. Pull pin (A) and rotate 90° on both sides of attachment frame.


A-Pin

H91825

Right Side of Attachment Frame Shown

OUO6041,0000051 -19-23SEP08-4/15

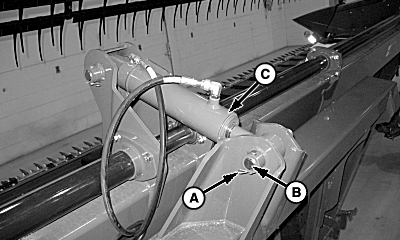

9. Remove pins (A-B) to remove center lift cylinder (C) from attachment frame.


A-Spring Pin and Straight Pin
B-Pin
C-Center Lift Cylinder

H91826

OUO6041,0000051 -19-23SEP08-5/15


10. Remove sump pan cover (See REMOVE AND INSTALL SUMP PAN procedure in the MAINTENANCE section of this manual).

11. Remove sump pan from front of center feed.

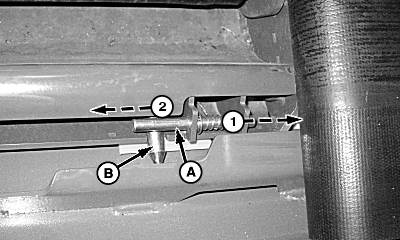

12. Move straight pin (A) towards outside of machine (1) and remove pin (B) by pulling towards inside of machine (2).

13. Repeat for pin on right side of center feed.

14. Carefully drive combine in reverse to remove attachment frame and center feed assembly from draper.

15. Lower center feed assembly onto blocks.

H91823

Left Side of Center Feed Shown


A-Straight Pin
B-Pin

OUO6041,0000051 -19-23SEP08-6/15

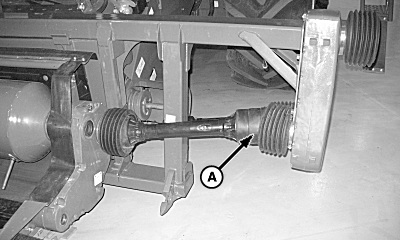

16. Disconnect center feed drive shaft (A) from main gearbox.


A-Center Feed Drive Shaft

H91822

OUO6041,0000051 -19-23SEP08-7/15

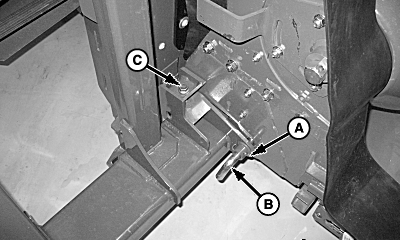

17. Remove spring pin (A) and pull pin (B).

18. Remove cap screw and nut (C).

19. Repeat on left side of center feed assembly.

20. Drive combine in reverse to remove attachment frame from center feed assembly.


A-Spring Pin
B-Pull Pin
C-Cap Screw and Nut

H91824

Right Side of Center Feed Assembly Shown

OUO6041,0000051 -19-23SEP08-8/15


H65556

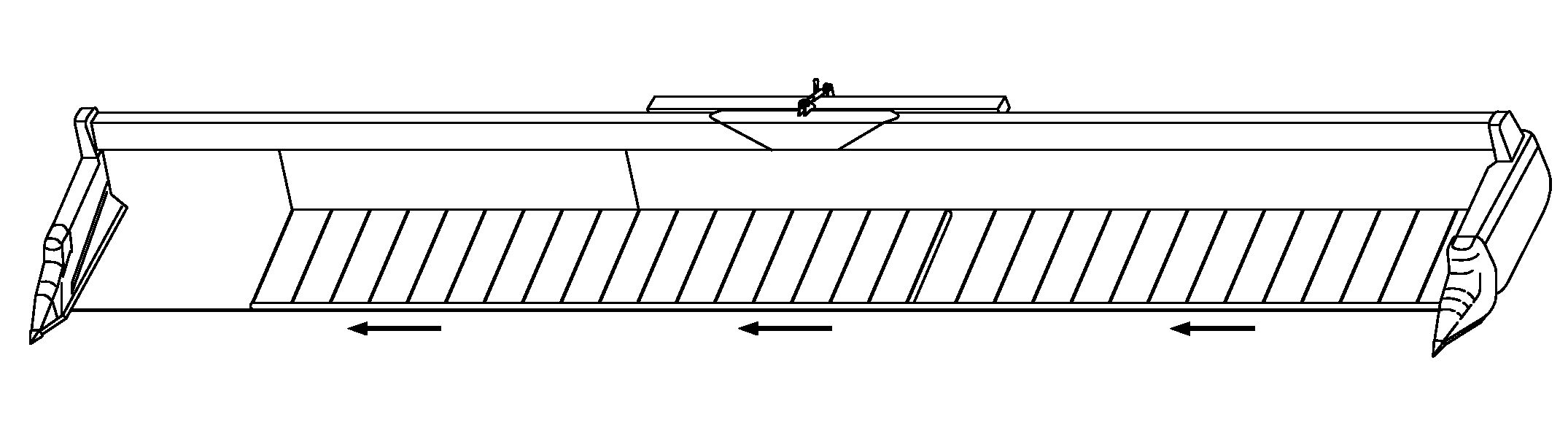

36 Foot Windrow Configuration

NOTE: If left-hand opening is desired, perform steps on left-hand deck shifting to the right.

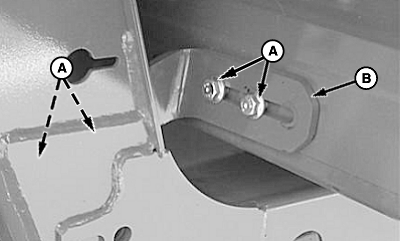

21. Remove cap screws (A) and right-hand deck lock (B).

NOTE: Maintain sufficient clearance between draper decks so belt cleats do not contact each other.

22. Slide right-hand deck left.


A-Cap Screws, (4 Used)
B-Deck Lock

H92886

OUO6041,0000051 -19-23SEP08-9/15


NOTE: If wider opening is desired, left-hand deck can be unlocked and shifted to the left using the following two steps. Maintain sufficient clearance between draper belt and mainframe on left end.

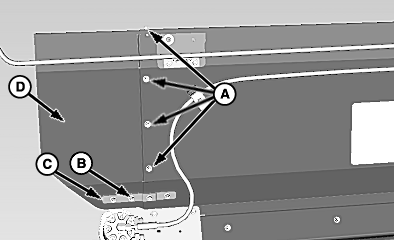

23. Remove and retain cap screws (A), cap screws (B), bracket (C) and backsheet extension (D).

NOTE: Maintain sufficient clearance between mainframe and belt cleats.

24. Reinstall deck lock using previously removed cap screws.

H92884


A-Cap Screws, (4 Used)
B-Cap Screws, (4 Used)
C-Bracket
D-Extension

OUO6041,0000051 -19-23SEP08-10/15

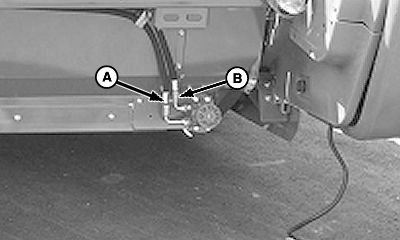

25. Reverse hydraulic hoses (A) and (B) on right-hand motor.

26. Drive combine forward and reattach frame to draper.


A-Hydraulic Hose
B-Hydraulic Hose

H92885

OUO6041,0000051 -19-23SEP08-11/15


27. Rotate pin (A) 90° on both sides of attachment frame so they latch in place.


A-Pin

H91825

Right Side of Attachment Frame Shown

OUO6041,0000051 -19-23SEP08-12/15


28. Reattach center lift cylinder (C) to attachment frame using retained pins (A) and (B).


A-Spring Pin and Straight Pin
B-Pin
C-Center Lift Cylinder

H91826

OUO6041,0000051 -19-23SEP08-13/15


29. Remove backshaft (A) from mounting post (B) and reattach to main gearbox.


A-Backshaft
B-Mounting Post

H91821

OUO6041,0000051 -19-23SEP08-14/15

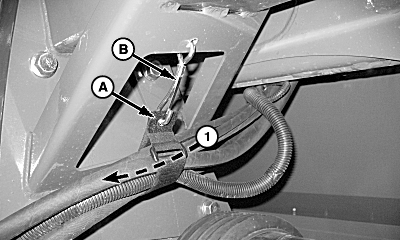

30. Remove multicoupler from storage bracket.

31. Route multicoupler through attachment frame (1) and reattach strap (A) to latch (B).

32. Attach multicoupler to feeder house.


A-Multicoupler Hose Strap
B-Latch

H91828

OUO6041,0000051 -19-23SEP08-15/15
