Header Warning Light Bulb Replacement

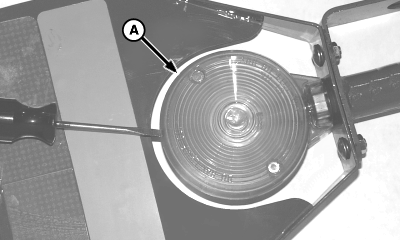

1. Insert a flat-blade screwdriver and carefully pry-off lens (A).

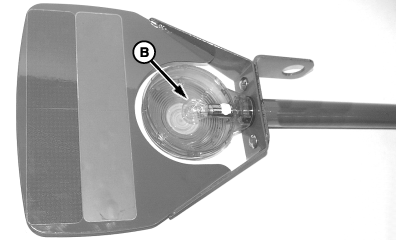

2. Push bulb (B) in and turn to remove.

3. Install new bulb.

4. Press lens back onto light housing.


A-Lens
B-Bulb

H72107
H72106

OUO6091,0001619 -19-08FEB08-1/1
