Feeder House Conveyor Speed (Optional High Speed Feeder House Sprocket)-Changing

causym CAUTION: Raise feeder house, lower safety stop, shut OFF engine, set parking brake and remove key.

Feeder house conveyor chain can be set to two different speeds by selecting drive sprocket (A) on right-hand side of lower shaft.

Use small sprocket for low speed and large sprocket for high speed.

    Important Notes About 32 Tooth Sprocket:

  • Sprocket is not recommended for corn use.
  • Sprocket must only be used with variable speed drive (if equipped) set to slowest speed.

    Recommended for conditions when feeding is poor due to following crops and conditions:

  • Crops: Barley, Oats, Rice, Rye, and Wheat
  • Conditions: High Volume, Green, Wet, Windrowed, and Poor Feeding

As crop conditions change or feeding improves (dryer, more even windrows, lighter straw), it is recommended to use the 26 tooth sprocket. Chain speed slows and reduces potential for straw damage or pre-threshing and extends chain life.

H90959

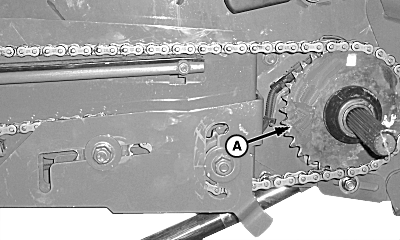

A-Sprocket

OUO6075,0000009 -19-25JUN08-1/2

NOTE: See Feeder House Conveyor Speed-Changing in this section for moving drive chain to smaller sprocket.

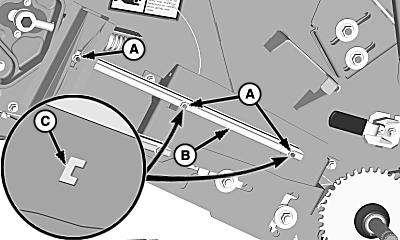

Loosen nuts (A) and slide chain guide (B) into desired notches (C) and tighten nuts.


A-Nuts
B-Chain Guide
C-Notches
