Every 10 Hours

IMPORTANT: Service times are for average conditions. Service more often if machine is used in extreme conditions.

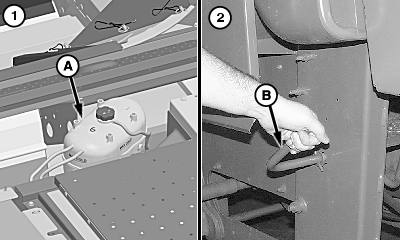

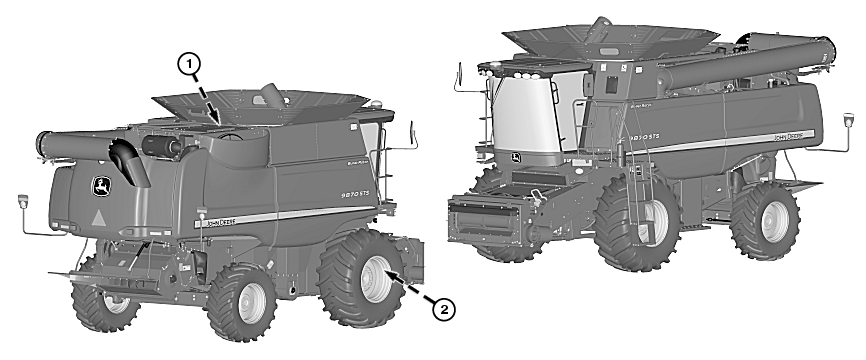

1. Surge Tank - Check engine coolant level in surge tank (A) with engine cold. Level must be up to "Max Cold" line.

2. Stone trap - At end of each day, dump stone trap with lever (B).

A-Surge Tank
B-Lever

OUO6075,00000AF -19-17APR08-1/1
