CommandCenter Display

Press button (A, B, C or D) to select desired type of information to view or change. Corresponding icon on display highlights and show number of available pages within that selection.

Once information type is selected, press button again to advance through available pages.

Details on each of these pages are given later in this section.

H87480

Display Navigation
Button PAGE 1 PAGE 2 PAGE 3 PAGE 4 PAGE 5
(A) Home View Harvest Monitor information, crop and machine settings Viewable machine settings (six reconfigure windows)
(B) Harvesting Information View Yield and moisture, select and change cut width View and zero values of fuel use, area/distance, weight and moisture View and change field totalsa View and change crop totalsa
(C) Combine Setup Change current machine settings Select crop, grain seed size, farm and fieldb Select/Change current header settings
View header hours		 Select/Change moisture alarm min/max, moisture correction and yield unitsc Change Harvest Smart (max harvest speed, target engine speed, response rate, target pressure)d
(D) Diagnostics and Calibration Active Alarms Calibrations Diagnostic Readings Special Tests
(E) Not currently used.
aInformation appears on GreenStar display (if equipped) instead of on CommandCenter.
bCrop, farm, and field appears on GreenStar display (if equipped) instead of on CommandCenter.
cPage appears if equipped with moisture sensor.
dPage appears if equipped with Harvest Smart Feed Rate.



OUO6075,00000BA -19-21APR08-1/2

Once desired CommandCenter display page is selected, the display is navigated using the following dial and switches on the armrest:

  • Selection Dial (A): Rotate dial to:

    a. Scroll through available items on selected page
    b. Increase or decrease values in a selected item

  • Indicator Light (B): indicates that a switch was selected and now can be adjusted to operator desired position or setting.

  • Confirm Switch (C): Once an available item is highlighted on display using selection dial, press switch to:

    a. Select that item
    b. Toggle between available selections within that item
    c. Enter/save a value

  • Main Menu Switch (D): Press switch to change active application that display is running. Items or applications in menu include:
    • Combine
    • On Board Diagnostics Tool (OBDT)
    • Display Settings

    NOTE: Display select switch must be activated to navigate between CommandCenter and GreenStar display (if equipped), see your John Deere dealer for further information.

  • Display Select Switch (E): Press switch to toggle selection dial control between CommandCenter display or GreenStar display (if equipped).

  • Cancel Switch (F): Press switch to cancel a current selection.

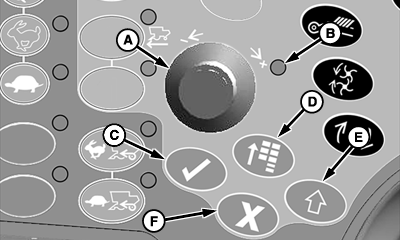

H86932


A-Selection Dial
B-Indicator Light
C-Confirm Switch
D-Main Menu Switch
E-Display Select Switch
F-Cancel Switch

OUO6075,00000BA -19-21APR08-2/2
