Cleaning Shoe Lights

NOTE: For lighting delay feature, see Lighting Delay/Timeout in this section for further information.

Cleaning shoe lights (A) provide the operator with lighting for adjustment of the cleaning shoe at night or in low light conditions.

Cleaning shoe ON/OFF switch (B) is located above the left-hand separator shield.

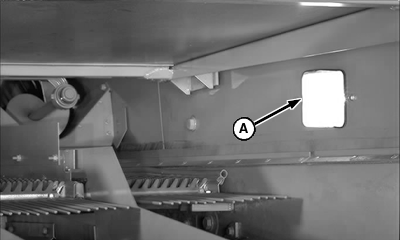

A-Cleaning Shoe Light
B-Cleaning Shoe ON/OFF Switch

OUO6075,0000647 -19-18DEC07-1/1
