Unloading Auger Support Stud-Adjusting (Standard Grain Tank)

NOTE: Periodically check to be sure that auger fully slides into support stud when auger is fully retracted. Readjust as needed.

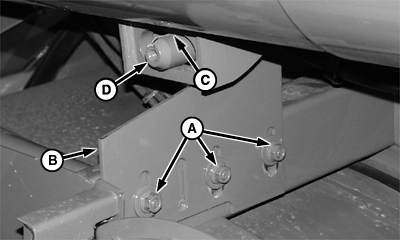

Loosen nuts (A) to adjust position of stud plate (B). Clearance (C) between top of stud (D) and slot, should be set to specification when auger is empty.

Specification

Top of Stud to Slot -Clearance

0-3 mm

(0-1/8 in.)

Adjust stud plate as needed and tighten nuts.

A-Hardware
B-Plate
C-Clearance
D-Stud

OUO6075,00007C8 -19-23APR07-1/1
