Unloading Auger Cradle Support-Adjusting (High Unload Rate Grain Tank)

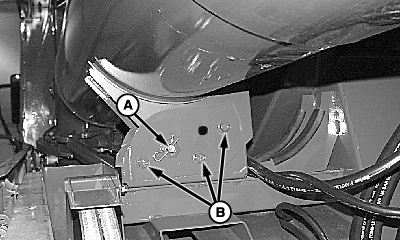

1. Swing unloading auger to storage or transport position and keep pivoting cradle pinned (A).

2. Loosen but do not remove cap screws (B).


A-Pin
B-Cap Screws

H76213

OUO6075,00007CD -19-16JUL07-1/2

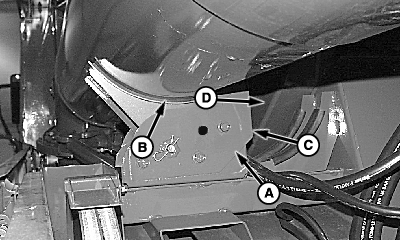

3. Adjust cradle support bracket (A) up or down until rubber bumper (B) contacts lower surface of unloading auger.

4. Square back edge of cradle support (C) with tubular structure on grain tank frame (D).

5. Tighten cap screws.


A-Cradle Support Bracket
B-Rubber Bumper
C-Back Edge of Cradle Support
D-Grain Tank Frame

H76214

OUO6075,00007CD -19-16JUL07-2/2
