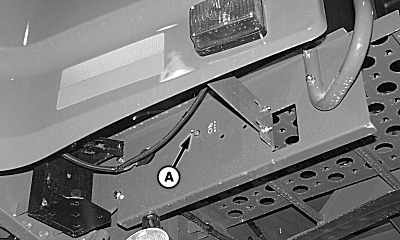

A-Engine Compartment Service Lights ON/OFF Switch

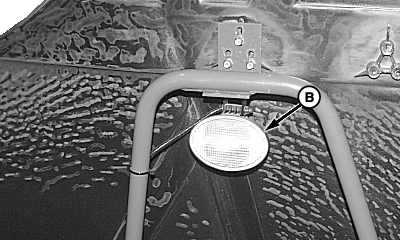

B-Engine Compartment Door Light

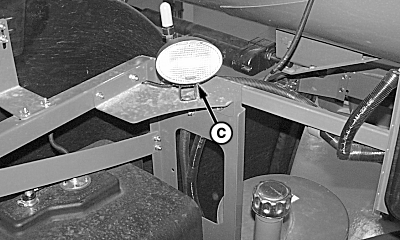

C-Engine Compartment Rear Light

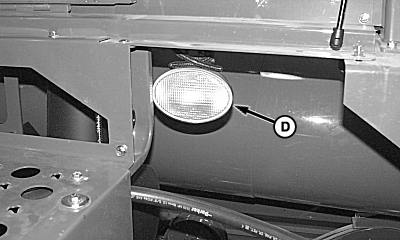

D-Engine Compartment Front Light

NOTE: For lighting delay feature, see Lighting Delay/Timeout in this section for further information.

Engine compartment service lights provide additional lighting for the engine area.

Engine compartment service lights ON/OFF switch (A) is located on right-hand rear side of machine.

Switch controls engine compartment door light (B), and engine compartment rear light (C) and engine compartment front light (D).

OUO6075,0000A38 -19-25JUN08-1/1
