To verify that the radio is set for North American frequencies:

2. Turn radio OFF (digital display shows current time).

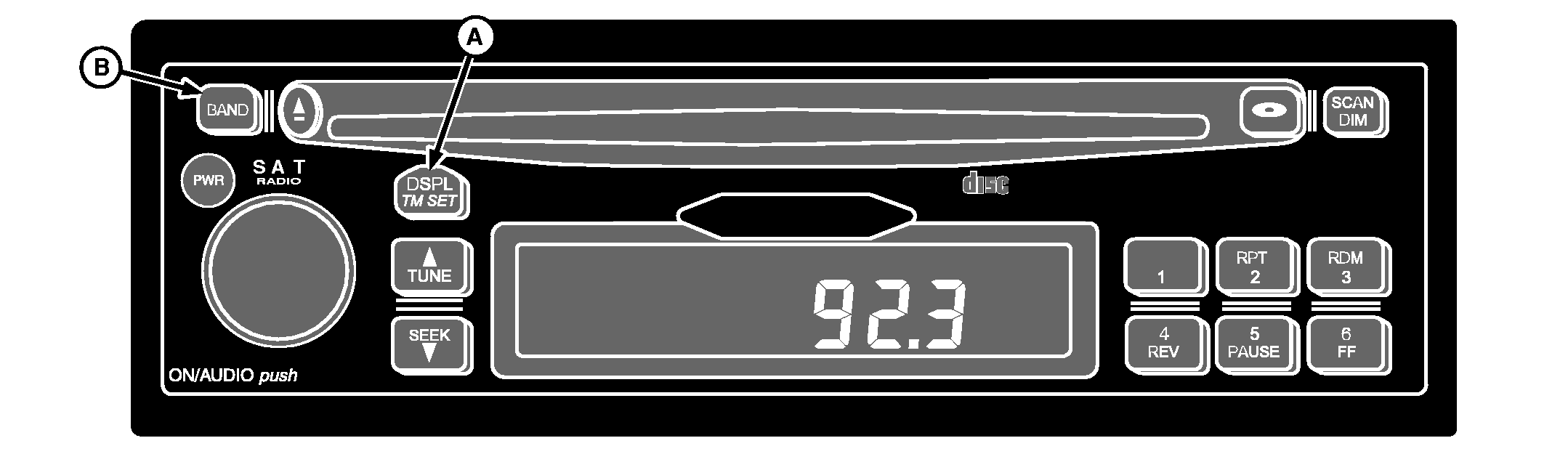

3. Press and hold the DSPL/TM SET button (A) until hour digits start to flash.

NOTE: When radio displays "USA", do not press any buttons until the radio display returns to the current time.

4. Immediately press BAND button (B) once.

Radio can be programmed for use in the U.S.A. (North America), China, Europe, Argentina or Japan. For use in Australia, set radio to "EUROPE" setting.

To program radio:

2. Turn radio OFF (digital display shows current time).

3. Press and hold DSPL/TM SET button (A) until hour digits start flashing.

4. Immediately press BAND button (B) to view current setting on digital display.

Repeatedly press BAND button to scroll through available area settings:

• U.S.A.
• EUROPE (Use for Australia)
• JAPAN
• ARGENTINA
• CHINA

Stop pressing BAND button when desired area appears.

Do not press any buttons for a few seconds; new area frequency setting is in use when display returns to show current time.

OUO6075,0000BF2 -19-09AUG07-1/1
