Batteries—Connecting Booster

H120103-UN-28NOV16

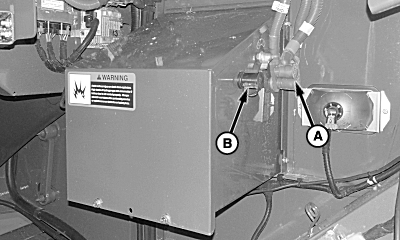

Style A

H120104-UN-28NOV16

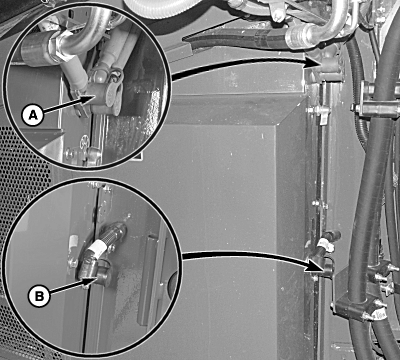

Style B

A - Positive (+) Post

B - Negative (-) Post

Gas given off by batteries is explosive. Avoid sparks near batteries.

Never connect jumper cables with the key switch or battery disconnect switch ON. Never jump-start with more than 12 V.

Remove protective caps from posts.

First jumper cable must first be connected to positive (+) post of the booster battery. Connect other end to positive (+) post (A) of the machine battery. Second jumper cable must first be connected to negative (-) post of the booster battery. Connect other end to negative (-) post (B) of the machine battery.
