Pair Bluetooth® Device to Generation 4 CommandCenter™

N119224-UN-24JUL15

Phone Shortcut Button on Navigation Bar

RXA0147930-UN-13APR15

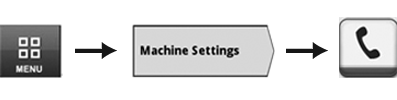

Menu → Machine Settings Tab → Phone Icon

RXA0132157-UN-28JUN13

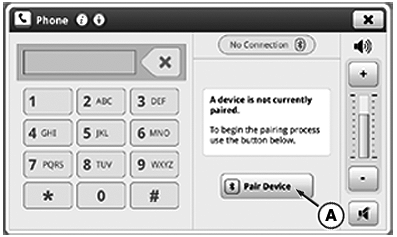

Pair Device Page

RXA0137741-UN-13DEC13

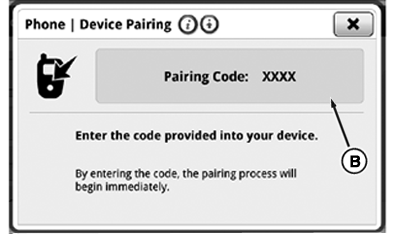

Pairing Code Page

A - Pair Device Button

B - Pairing Code Box

Radio system is equipped with integrated Bluetooth®, which allows data transfer between the radio system and a paired close-range Bluetooth® device such as a cell phone.

Enable Bluetooth® mode on the device before trying to pair device to radio. Not ALL devices are able to use Bluetooth® feature on the radio.

Once Bluetooth® pairing process has been initiated, changes to the radio (ex: changing source or frequency) causes pairing to cancel.

To access the phone main page, use Phone Shortcut Button on Navigation Bar or follow alternative path:

1. Select Menu.
2. Select Machine Settings tab.
3. Select Phone icon.
4. Enable Bluetooth® mode on device.
5. Select Pair Device button (A) to start pairing process.
6. Enter pairing code displayed in Pairing Code box (B) into device. Pairing process begins immediately.

Once device is connected successfully, “Pairing Complete” is displayed. Up to five device pairings can be stored in the radio's Bluetooth® feature. To learn about managing stored devices, see Manage Bluetooth® Devices in this section of this Operator’s Manual.

Phone book does not appear on CommandCenter™ display.
