Brightness

Brightness and Color Mode

• Auto Mode

Auto Mode is recommended setting. This synchronizes display brightness with cab light switch. If cab lights are off, display is in Day Mode. If cab lights are on, display is in Night Mode.

• Day and Night Modes

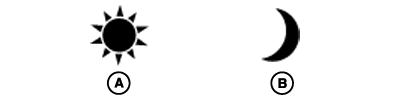

PC15319-UN-20MAY13

A - Day Mode

B - Night Mode

Select either mode to prevent display brightness from synchronizing with cab light switch.

The mode selected does not adjust brightness of a second display. Adjust brightness of that display through its settings.

Brightness Settings

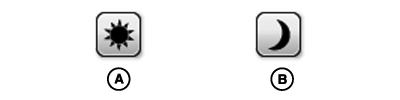

PC15320-UN-20MAY13

A - Day Settings

B - Night Settings

Select either settings button to display a popup page for corresponding brightness mode.

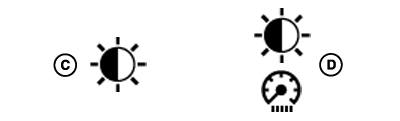

PC15321-UN-20MAY13

C - Display Brightness

D - Cab Brightness
