Operating System Applications Overview

PC15302-UN-19MAR13

Operating System Applications Package

Operating System applications package is installed at the factory, and is updated with periodic software updates from John Deere. These applications are used for basic functions of display.

Calculator

PC23955-UN-24MAR17

Calculator

• Use Calculator application for quick mathematical calculations.
• It is found on Applications tab of the display menu.

Controls Setup

PC15326-UN-08JUL13

Controls Setup

• Configures an ISOBUS or machine joystick to control machine or implement functions.
• It is found on Applications tab of the display menu.

Date and Time

PC16674-UN-18MAR13

Date and Time

• Information from Date and Time application is used for several important functions on system. These include error logging, activations, and data recording.
• Date and time are set automatically if a GPS receiver is connected and receiving valid signal. In this case, only set time zone.
• It is found on System tab of the display menu.

Diagnostics Center

PC17272-UN-17JUL13

Diagnostics Center

• Diagnostics Center is the one place to find diagnostics for the entire system.
• It is found on System tab of the display menu.

Display and Sound

PC16685-UN-18MAR13

Display and Sound

• Along with display brightness and volume, Display and Sound is used to calibrate display and configure multiple displays.
• It is found on System tab of the display menu.

Equipment Manager

PC20410-UN-22MAY15

Equipment Manager

• The Machine Profile allows operator to configure GPS offsets and machine dimensions.
• The Implement Profile allows operator to configure Implement Connection Type, Working Width, Dimensions, and Recording Triggers.
• It is found on Applications tab of the display menu.

Fields and Boundaries

PC17260-UN-11JUL13

Fields and Boundaries

• Field names are used to organize information so it is easier to find and use data, such as guidance lines.
• Use Fields and Boundaries application to set up clients, farms, and fields.
• Select client, farm, and field to set current location.
• It is found on Applications tab of the display menu.

File Manager

PC16671-UN-18MAR13

File Manager

• Data and setup information can be transferred between displays or compatible desktop software.
• Perform a Factory Data Reset to clear display of user data.
• It is found on System tab of the display menu.

Help Center

PC16684-UN-18MAR13

Help Center

• Onscreen Help about each application and more is available in Help Center.
• Not all Help languages are installed at the factory. Update display software to install Help for all supported languages.
• It is found on Applications tab of the display menu.

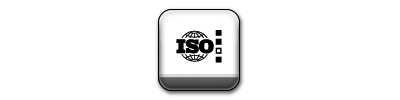

ISOBUS Tasks

PC23093-UN-26SEP16

ISOBUS Tasks

• ISOBUS Tasks records ISOBUS totals provided by TC-BAS (task controller basic) AEF (Agricultural Industry Electronics Foundation) certified implements and John Deere pull-type sprayers. All totals provided by the ISOBUS implement, such as time, area, mass, and volume, are recorded in the task.
• It is found on Applications tab of the display menu.

ISOBUS VT

PC16682-UN-18MAR13

ISOBUS VT

PC15293-UN-18MAR13

ISOBUS VT Menu

• Monitor and control ISOBUS 11783 compatible controllers and implements.
• It is found on Applications tab of the display menu.

Only one ISOBUS controller can be viewed at a time. If more than one controller is connected, select Menu button within ISOBUS VT to view a list of controllers to choose from.

Language and Units

PC16677-UN-18MAR13

Language and Units

• Use Language and Units application to change Language, Number Format, and Units of Measurement.
• It is found on System tab of the display menu.

Layout Manager

PC16678-UN-18MAR13

Layout Manager

• Use Layout Manager to create and modify run pages and shortcut bar so important information and functions can be accessed from the main page.
• It is found on Applications tab of the display menu.

Machine Monitor

PC15318-UN-16MAY13

Machine Monitor

• Machine Monitor displays machine-specific performance values.
• It is found on Applications tab of the display menu.

Mapping

PC20413-UN-11MAY15

Mapping

• Mapping application is used to view spatial features, such as guidance, coverage, work data, and map based prescriptions. (Prescriptions require a CommandCenter™ Premium activation.)
• It is found on Applications tab of the display menu.

Remote Display Access

PC17363-UN-16DEC13

Remote Display Access

• Remote Display Access (RDA) allows someone from a remote location to view an operating display.
• It is found on Applications tab of the display menu.

Settings Manager

PC22543-UN-22APR16

Settings Manager

• Use Settings Manager to load, edit, or save configurations of machine and implement settings.
• It is found on Applications tab of the display menu.

Software Manager

PC15346-UN-11JUL13

Software Manager

• Use Software Manager to update software, activate features, and install onscreen help packages.
• It is found on System tab of the display menu.

StarFire™

PC17388-UN-15MAY14

StarFire

• The StarFire™ application is used to view StarFire™ Receivers. If more than one receiver is connected, select the desired receiver using the application.
• It is found on Applications tab of the display menu.

Users and Access

PC17262-UN-12JUL13

Users and Access

• Users and Access manages user profiles and locks users out of certain settings.
• It is found on System tab of the display menu.

Video

PC23956-UN-24MAR17

Video

• Use Video application to observe areas around the machine that are difficult to see from the operator’s station.
• Video can be displayed when certain machine functions are performed, such as reversing.
• It is found on Applications tab of the display menu.

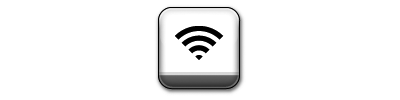

Wireless Settings

PC23092-UN-26SEP16

Wireless Settings

• Access wireless networks to connect to the internet, or create a wireless network to connect mobile devices to the machine.
• It is found on System tab of the display menu.

Work Monitor

PC15317-UN-16MAY13

Work Monitor

• Work Monitor displays averaged and totaled machine and operation-specific values.
• It is found on Applications tab of the display menu.

Work Setup

PC20415-UN-11MAY15

Work Setup

• Use Work Setup to set up operations when changing implements, fields, or applying a different product.
• It is found on Applications tab of the display menu.
