Generation 4 CommandCenter™ Processor

Generation 4 CommandCenter™ software runs on a processor separate from the display. There are two processor options available.

Maximum capabilities for each processor are listed. Depending on machine configuration, some functions may not be available.

PC17396-UN-15JUL14

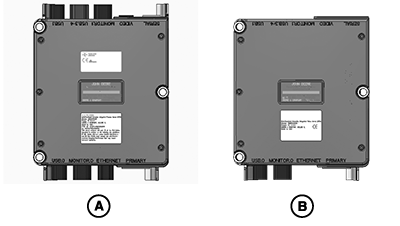

4600 and 4100 Processors

A - 4600 Processor

B - 4100 Processor

4600 Processor (A)

• 4 Video Camera Inputs
• 4 USB Inputs
• 2 Display Outputs
• Upgradable for future applications

4100 Processor (B)

• 1 Video Camera Input
• 1 USB Input
• 1 Display Output
