Shortcut Bar

PC17276-UN-13AUG13

A - Shortcut Softkeys

Shortcut bar is a collection of shortcut softkeys that display status information and provide quick access to application functions.

Select Default Shortcut Bar to Edit the Shortcut Bar.

Edit Shortcut Bar

PC17386-UN-15MAY14

PC17387-UN-15MAY14

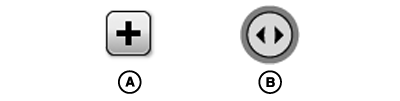

A - Add Button

B - Move Shortcut Icon

C - Remove Shortcut Button

Shortcuts can be added, removed, and rearranged on the shortcut bar.

The same shortcut can only be placed on the shortcut bar once.

Select Add Shortcut button (A) and choose application with appropriate content. Applications without available shortcuts are grayed out. From list, find shortcut that performs desired function and select Add button.

Once added to shortcut bar, select shortcut to highlight it. Press and slide shortcut (B) to move it to an open area.

To remove a shortcut, select shortcut to highlight it and select Remove button (C).
