Service Checks

Availability of the Service Checks feature depends on purchase options.

Perform service checks with machine on level ground and engine off. For accurate readings, wait at least 40 minutes after engine shut down before checking fluid levels.

A light indicates the status of a machine service checkpoint.

• Green light — Normal level
• Red light — High level or low level

The following checkpoints are available:

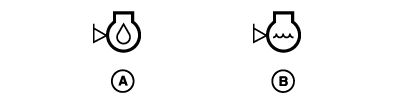

PC17385-UN-15MAY14

A - Engine Oil Level

B - Engine Coolant Level

• Engine Oil Level (A)
• Engine Coolant Level (B)
