Rear Ladder and Landing

H95325
H95325-UN-11FEB10

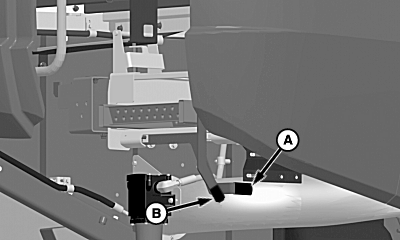

A - Handle

B - Handle

Shut OFF engine, set parking brake and remove key.

Push up on handle (A) and swing ladder out until door latches.

Use handle (B) to pull ladder rearward.

OUO6075,0000588-19-20100216
