Side Finder Lights and Cleaning Shoe Lights—Replacing

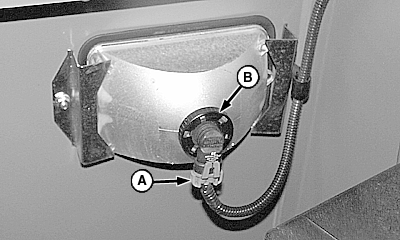

H57680-UN-28MAY99
A - Connector
B - Retainer Ring
Disconnect wiring harness connector (A) from bulb assembly.Push in and twist retainer ring (B) counterclockwise and remove.
Remove and replace bulb.
Replacement light bulbs are sensitive to skin contact. Wear protective gloves or avoid touching light bulb surface.
Install bulb assembly in reverse order and connect wiring harness.
|
OUO6075,0000782-19-20101104 |
