Countershaft Right-Hand Front Belt—Replacing

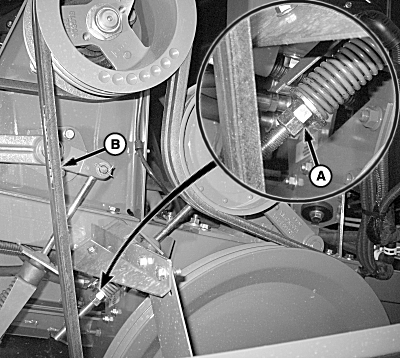

H96924
H96924-UN-16JUN10

A - Nuts

B - Right-Hand Front Belt

Shut OFF engine, set parking brake and remove key.

Loosen nuts (A) and remove belt (B).

Install replacement belt and adjust tensioner until washer is positioned between end of gauge and bottom of step. Tighten lock nut.

OUO6075,00007F9-19-20100617
