Lower Driving Light Bulb (If Equipped)—Adjusting

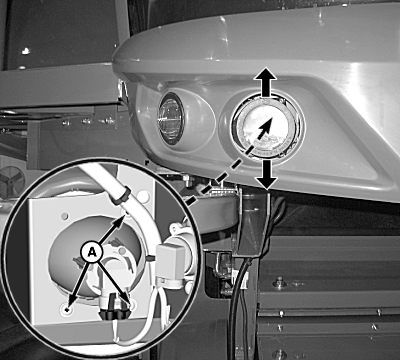

H98977-UN-02NOV10
A - Screws
Lower feeder house fully before replacing or adjusting headlights.Light assemblies can be adjusted as needed to achieve correct lighting angles.
Adjust screws (A) to rotate light assembly up or down to desired position and tighten screws. Repeat on remaining lights as needed.
|
