Chopper Drive Belt Tension—Adjusting

H98146
H98146-UN-21SEP10

A - Quick-Lock Pins

B - Shield

Shut OFF engine, set park brake and remove key.

Lower chopper fully to properly tension belts.

Remove quick-lock pins (A) and shield (B).

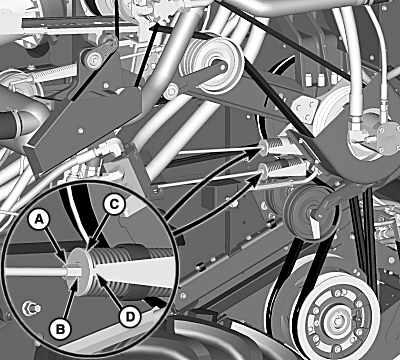

H108275
H108275-UN-18JUN13

A - Lock Nut

B - Nut

C - Washer

D - Gauge

Loosen lock nut (A) and tighten nut (B) until washer (C) is positioned between end of gauge (D) and bottom of step. Tighten lock nut.

Install shield and retain with quick-lock pins.
