Hydraulic Oil and Gas Under Pressure

H108688
H108688-UN-01AUG13

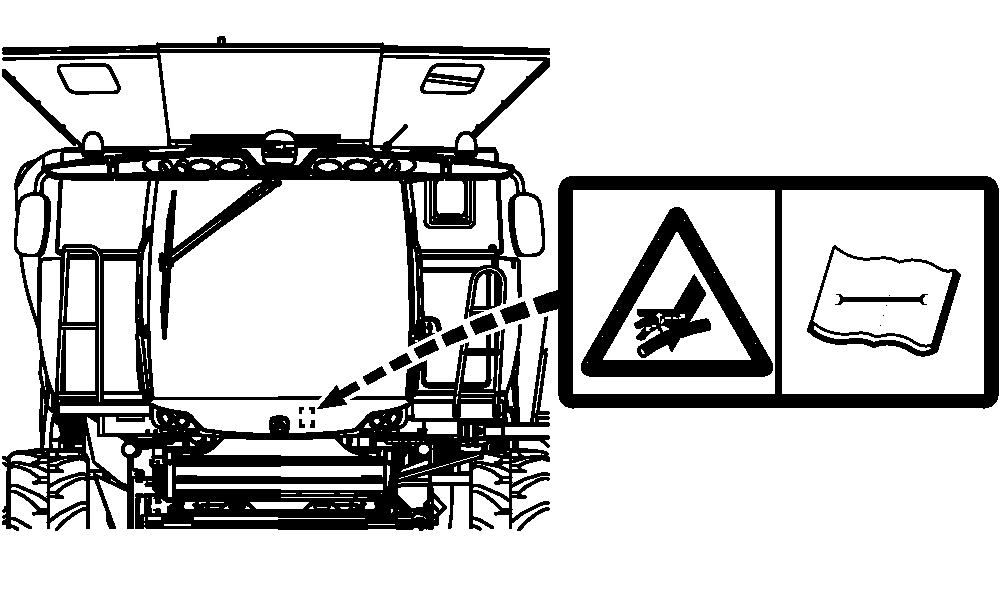

Decal is located on cab support and is only on ProDrive™ transmission machines.

Avoid serious injury from contact with hydraulic oil and gas under pressure.

Before removing hydraulic components, disassembling or charging accumulators:

  1. Relieve system hydraulic pressure. Refer to operator's manual and repair manual for system information.
  2. Stop engine and remove key.

Use only DRY NITROGEN for recharging accumulator. See your local John Deere dealer.

OUO6075,00015C0-19-20130805
