Tough Crop Feed Accelerator Wear Strips—Replacing

H107173-UN-06MAR13

H107174-UN-06MAR13

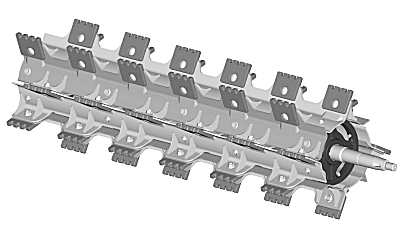

Feed Accelerator Wings and Wear Strips (Tough Crop)

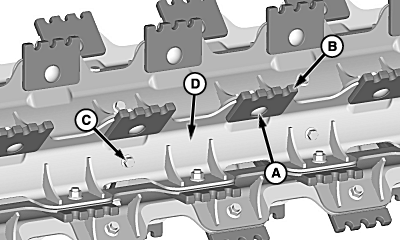

A - Round Head Cap Screws

B - Feed Accelerator Wear Strip

C - Cap Screws

D - Feed Accelerator Wings

Feed accelerator wings and wear strips can be replaced without removing the feed accelerator. Replace feed accelerator wings and wear strips in sets of two and opposite of each other to maintain proper balance.

If feed accelerator is removed from machine, or has been serviced, tighten clamp bolts before securing wings.

Always replace hardware when replacing feed accelerator wear strips.

Remove round head cap screws (A) and replace feed accelerator wear strips (B) as required. Tighten round head cap screws to specification.

Feed Accelerator Wear Strip Round Head Cap Screws	Torque	130 N·m (96 lb.-ft.)

Remove cap screws (C) and replace feed accelerator wings (D) as required. Tighten cap screws to specification.

Feed Accelerator Wing Cap Screws	Torque	70 N·m (52 lb.-ft.)
