Separator Covers

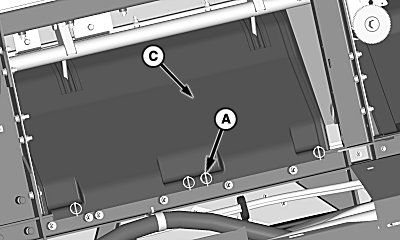

H111237-UN-13MAY14

Threshing Cover (Standard Concave Adjust)

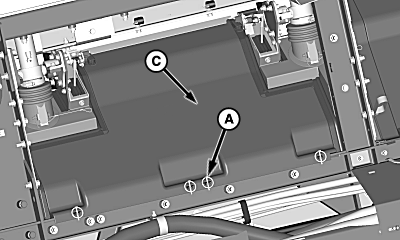

H111236-UN-13MAY14

Threshing Cover (Active Concave Isolation)

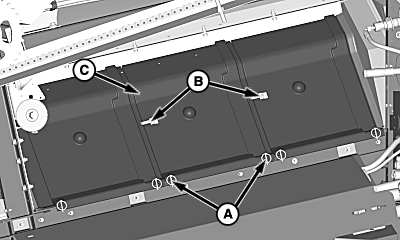

H111089-UN-10APR14

Separator Covers

A - Quick-Lock Pins

B - Spring Straps

C - Covers

To prevent grain loss, verify that separator covers are flush against separator and underneath edge of separator. Covers are installed starting from left-hand side, as facing the machine and working to the right.

Do not lay covers in hot sun or they will become distorted.

One cover on left-hand side of machine and two covers on right-hand side of machine are used to seal the threshing section. Three covers located on both sides of machine are used to seal the separating section.

Quick-lock pins (A) and spring straps (B) are used to retain covers (C).

Remove quick-lock pins and raise spring straps to remove covers.
