Concave Sector Gear Shear Bolts (Standard Concave Adjust)

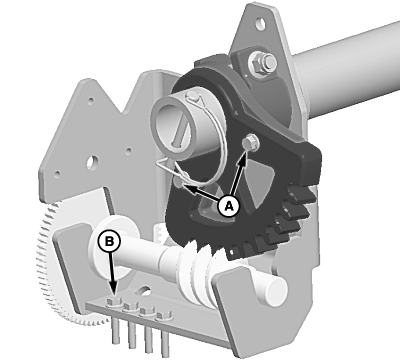

H88917-UN-14JUN07
A - Shear Bolts
B - Extra Shear Bolts (4 Used)
Shut OFF engine, set park brake and remove key.Use only John Deere supplied shear bolts (A), see your John Deere dealer for replacement shear bolts.
If shear bolts should break, replace with extra shear bolts (B), which are provided on sector gear bracket.
Tighten shear bolts to specification.
| Shear Bolts | Torque | 15 N·m (133 lb-in.) |
|
OUO6075,0001800-19-20140513 |
