Air Compressor System (If Equipped)

H112987
H112987-UN-20FEB15

H115838
H115838-UN-09SEP15

H115575
H115575-UN-21AUG15

H112990
H112990-UN-20FEB15

A - Reservoir

B - Air Compressor Hose Coupler

C - Air Compressor Hose Coupler

D - Air Compressor Hose/Wand

E - Air Compressor Hose/Wand

Never clean engine air filters or debris management air filters while machine engine is running.

For optimal air compressor performance, engine must be running to provide continuous air supply.

Not recommended to inflate tires on machine or operate air tools.

Not recommended to use both coupler connections simultaneously.

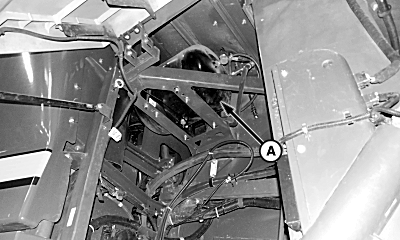

Air compressor is on engine deck and reservoir (A) is on the right-hand side of machine.

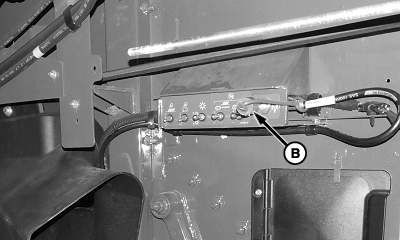

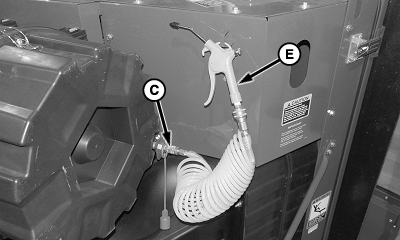

Air compressor hose coupler (B) is on left-hand side of machine and air compressor hose coupler (C) is on engine deck.

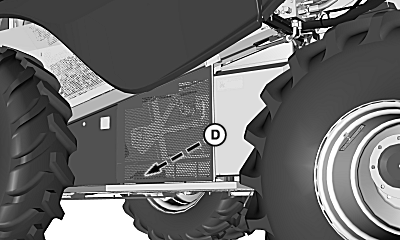

Air compressor hose/wand (D) is on left-hand side of machine and air compressor hose/wand (E) is on engine deck.

OUO6075,000412E-19-20160321
