Gull Wing Doors

  1. H114481
    H114481-UN-08JUN15

    H106222
    H106222-UN-19FEB13

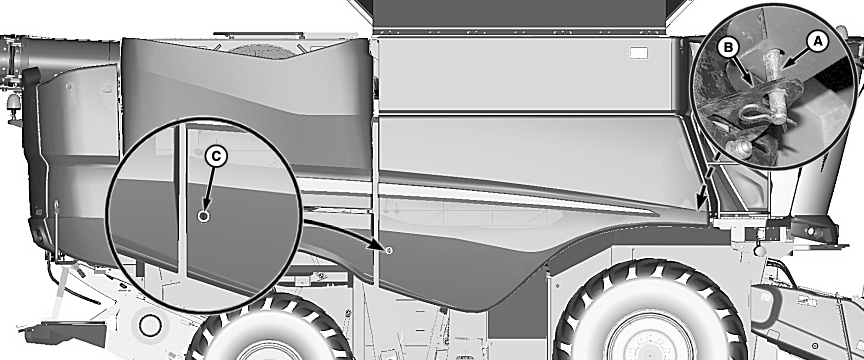

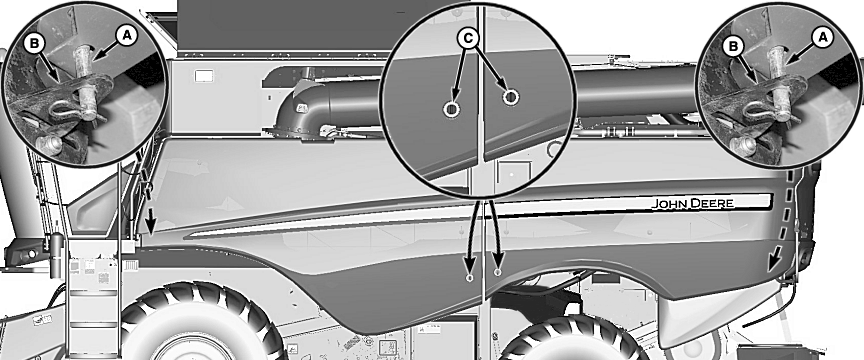

    A - Pin

    B - Locking Plates

    C - Latch

    Shut OFF engine, set park brake and remove key.

    Pinning and latch lever operation is the same on both sides of machine.

    Remove spring clip, and pin (A) from locking plate (B). Reinstall spring clip onto pin.


  2. Turn latch (C) and pull out on the gull wing doors to raise.

H118603
H118603-UN-03JUN16

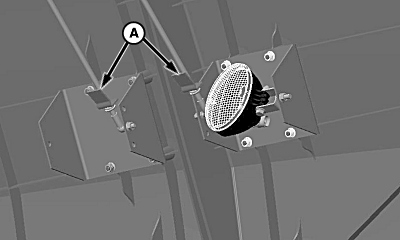

Left-hand Cylinder Stops

A - Cylinder Stops

Do not use cylinders as hand holds or hang anything on these cylinders. This could cause the cylinder rod to bend or break.

In cold weather or in high winds, these gull wing doors may slowly lower. Position cylinder stops (A) on rod to hold gull wing doors in place.

OUO6075,00041BE-19-20160603
