Shoe, Fan, and Conveyor Auger Belt—Adjusting
H116821-UN-07JAN16

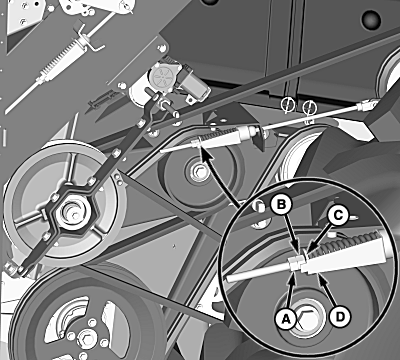

Shield Removed for Clarity
A - Nut
B - Nut
C - Washer
D - Gauge
Shut OFF engine, set park brake and remove key.Loosen nut (A) and tighten the nut (B) until the washer (C) is positioned between end of gauge (D) and bottom of step. Tighten lock nut.
|
