Shoe, Fan, and Conveyor Auger Belt—Replacing

H116823-UN-07JAN16

H54683-UN-17MAY99

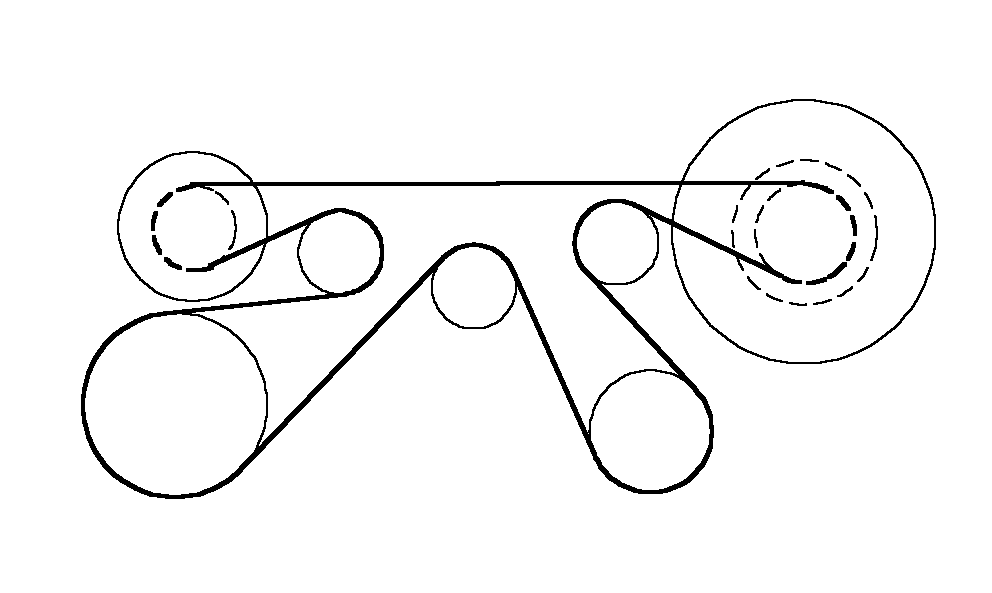

Belt Routing

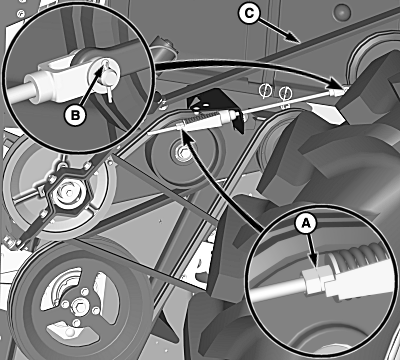

A - Nuts

B - Cotter Pin

C - Belt

Remove right-hand front countershaft belt and cleaning fan variable drive belts.

Loosen nuts (A) and remove the cotter pin (B) from the tensioning rod.

Remove shoe, fan, and conveyor auger drive belt (C).

Install replacement belt and adjust the tensioner until washer is positioned between end of gauge and bottom of step.

Assemble tensioning rod and install the cotter pin.

Install front countershaft belt, cleaning fan variable drive belt and adjust tensioners until washer is positioned between end of gauge and bottom of step.
