Fire Extinguisher Operation

H90363
H90363-UN-05DEC07

Your machine is equipped with general-purpose powder fire extinguisher and a pressurized liquid fire extinguisher. Extinguishers must be checked daily when entering or exiting the cab and when working around machine to ensure that they are in working condition. Fire extinguishers must be replaced or professionally serviced after any usage.


Fire Extinguisher Recommendations:

Read label on extinguishers and become familiar with instructions and restrictions to use them.

    General-Purpose Powder Fire Extinguisher:

  • Use extinguisher for grease, oil, electrical, and chemical fires.

    Pressurized Liquid Fire Extinguisher:

  • Use extinguisher on crop material buildup or crop debris fires.

Use of a Fire Extinguisher:

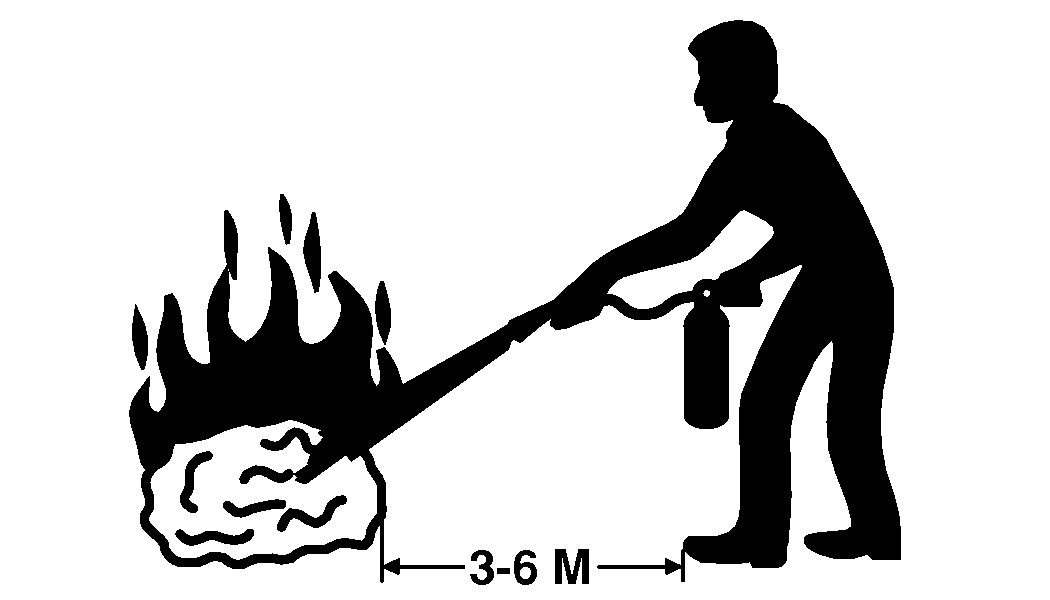

The diagram shows the recommended method to extinguish a fire. Always aim towards base of fire.

The following are basic steps for the use of a fire extinguisher:

  1. Remove fire extinguisher from bracket and carry to area of fire.
  2. Approach area of fire with wind to your back.
  3. Pull safety pin from top of extinguisher.
  4. Hold extinguisher upright by handles and aim hose at base of flames.
  5. Squeeze handles to discharge fire extinguisher.
  6. Move nozzle back and forth, covering flames with a cloud of powder.

Inspection Checklist:

At least once per month, inspect fire extinguishers and ensure the following:

  1. Are fire extinguishers positioned in designated location on cab ladder landing and at rear of machine?
  2. Are there any obstructions to proper access or visibility?
  3. Are operating instructions on nameplate legible and facing outward?
  4. Are safety seals broken or missing?
  5. Is extinguisher full? (Determines by weighing or “hefting”)
  6. Is there any physical damage, corrosion, leakage, or a clogged nozzle?

When inspection of fire extinguisher reveals a deficiency, extinguisher must be serviced or replaced.

OUO6075,00042AB-19-20160628
