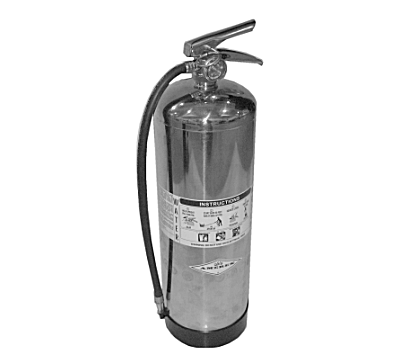

Charge Liquid Fire Extinguisher (If Required)

1.
   H117901-UN-28MAR16

   Liquid fire extinguisher may be shipped uncharged. Prior to delivery of machine the liquid fire extinguisher must be charged.

   When an antifreeze charge is used to freeze protect extinguisher, a complete discharge and maintenance is required.

   Fire extinguisher shown may vary depending on country requirements and fire extinguisher manufacturers.

   Before attempting to recharge, ensure that extinguisher is completely depressurized.

   Refer to information provided with the fire extinguisher to properly fill and charge.

---




2. Install fire extinguisher on the machine.
