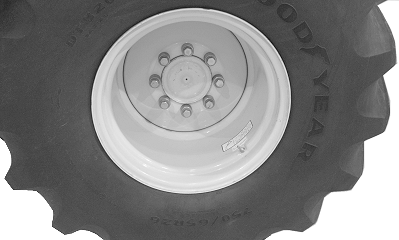

Rear Wheel Bolt Torque

H96809-UN-09JUN10

M16 Wheel Bolts (Regular Duty Two-Wheel Drive)	Torque	315 N·m (230 lb·ft)
M22 Wheel Bolts (Extra Heavy-Duty Two-Wheel Drive)	Torque	710 N·m (524 lb·ft)
M22 Wheel Bolts (Four-Wheel Drive)	Torque	710 N·m (524 lb·ft)

After the first hour of operation and again after every 10 hours of operation, torque wheel bolts to specification until 50 hours of operation is completed. Torque wheel bolts every 100 hours thereafter.

Refer to decal on the tire for proper torque sequence.
