Driving Machine on Roads

  1. H115016
    H115016-UN-22MAR16

    Folding Button

    Avoid power line entanglement. Grain tank covers must be closed before transporting machine.

    Verify that grain tank is unloaded before transporting machine on road.

    Verify that folding unloading auger and folding grain tank covers are fully folded before driving machine.

    Press folding button on navigation bar. See Folding Application Help or Operator's Station Help for further information.

    The following items must be folded to the transport position:

    • Unloading Auger
    • Grain Tank Covers (If Equipped)


  2. H102235
    H102235-UN-15JUN11

    A - Clamps

    Manual Fold Clean Grain Auger (If Equipped): Release clamps (A) and lower auger.

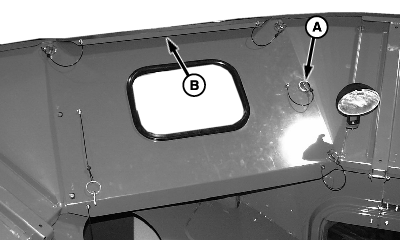

  3. H75331
    H75331-UN-26FEB03

    Front Grain Tank Extension Shown

    H113135
    H113135-UN-05MAR15

    A - Quick-Lock Pins

    B - Grain Tank Corner Extensions

    C - Storage Rack

    116 L/s (3.3 bu/s) Unload Rate Grain Tank Extensions (If Equipped): Remove quick-lock pins (A) from the grain tank corner extensions (B). Store corner grain tank extensions in the storage rack (C). Fold grain tank extensions in the following order:

    1. Fold front grain tank extension and rear grain tank extension.

    2. Fold left-hand grain tank extension and right-hand grain tank extension.

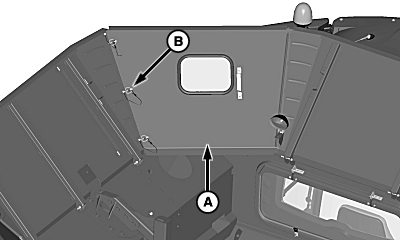

  4. H114383
    H114383-UN-02JUN15

    Front Grain Tank Extension

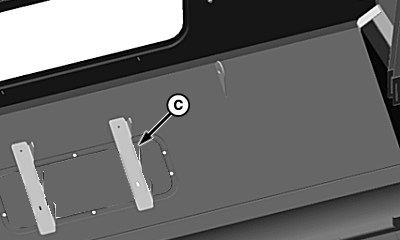

    H114384
    H114384-UN-02JUN15

    A - Grain Tank Corner Extensions

    B - Quick-Lock Pins

    C - Storage Rack

    134 L/s (3.8 bu/s) Unload Rate Grain Tank Extensions (If Equipped): Remove quick-lock pins (B) from the grain tank corner extensions (A). Store corner grain tank extensions storage rack (C). Fold grain tank extensions in the following order:

    1. Fold front grain tank extension and rear grain tank extension.

    2. Fold left-hand grain tank extension and right-hand grain tank extension.

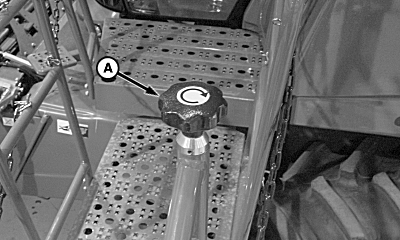

  5. H96869
    H96869-UN-11JUN10

    A - Handle

    Swing ladder to the full forward position to reduce machine width and to orient marker/hazard light toward oncoming motorists.

    Travel at a reasonable speed for road or field conditions. Never transport on the road with grain in the tank.

    Follow local regulations for equipment size, lighting, and marking before driving on public roadways.

    Use handle (A) to unlock ladder and swing fully forward.


  6. Fold radio antenna down and retain with hook (if equipped). If the hook is not available, retain the antenna to cab roof with tape.

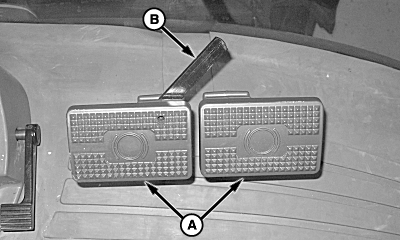

  7. H96681
    H96681-UN-01JUN10

    A - Pedals

    B - Lock

    Lock brake pedals together with lock (B) when driving on roads. Leave pedals (A) unlocked for field operation.


  8. Use seat belt whenever operating machine or riding as an observer.

    Fasten seat belt.

  9. Sound horn before starting engine to clear people away from machine.

    Sound horn and start engine. Use cold weather starting aid if needed.

  10. H116348
    H116348-UN-19DEC16

    Header Raise/Lower Switch

    Raise header with the header switch.

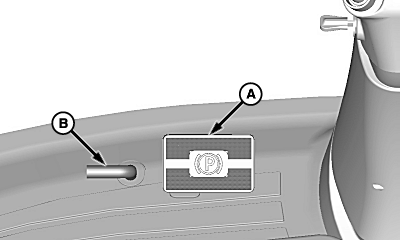

  11. H119677
    H119677-UN-20OCT16

    A - Park Brake

    B - Pedal

    Mechanical Shift Transmission: Disengage park brake (A) with pedal (B).


  12. H117022
    H117022-UN-28MAR16

    Road Transport Disconnect

    After transporting machine, press road transport disconnect switch for two seconds allowing indicator light to turn OFF and allowing desired switch functions to operate.

    Engage road transport disconnect switch.


  13. H117885
    H117885-UN-29MAR16

    Hazard Light

    When transporting on a road or highway, marker/hazard lights and tail lights on both sides provide a warning to operators of vehicles approaching from the front and rear. These lights must be turned ON when driving machine on public roadways. Swing cab ladder fully forward to orient marker/hazard lights towards oncoming motorists. Do not operate marker/hazard lights if prohibited by law.

    Turn beacon/hazard light switch ON for both daytime and nighttime road travel. Warning lights automatically operate when hazard lights are ON.

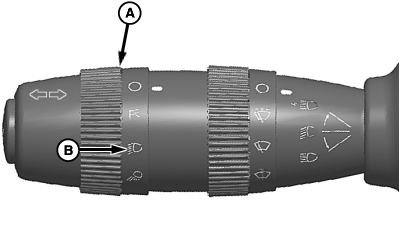

  14. H96014
    H96014-UN-22JUN11

    A - Selection Switch

    B - Road Lights Switch

    Use selection switch (A) to turn ON road lights (B) for nighttime travel.


  15. Turn signal indicators on corner post display illuminate to indicate a turn.

    Use turn signals as needed. They are not self-canceling.

  16. H117021
    H117021-UN-28MAR16

    Engine Speed (Fast Speed)

    Press engine speed switch for maximum engine speed.


  17. For field operation, select a gear according to working conditions.

    Mechanical Shift Transmission: Engage third gear for road travel.

  18. If transporting machine with header attached, travel at a reasonable speed to ensure adequate braking performance and control of machine.

    Slowly move the multi-function lever forward or rearward. When coming to the top of a hill, pull back on the multi-function lever before starting down the other side.

OUO6075,0004354-19-20170125
